EVRD-05

• CETOP05 Proportional controlled directional valve
• Size: ND 10 –ISO 4401-05 (CETOP 05)
• Flow rate: max 90 l/min
• Pressure: max 320 bar on P, A and B portsmax 210 bar on T port

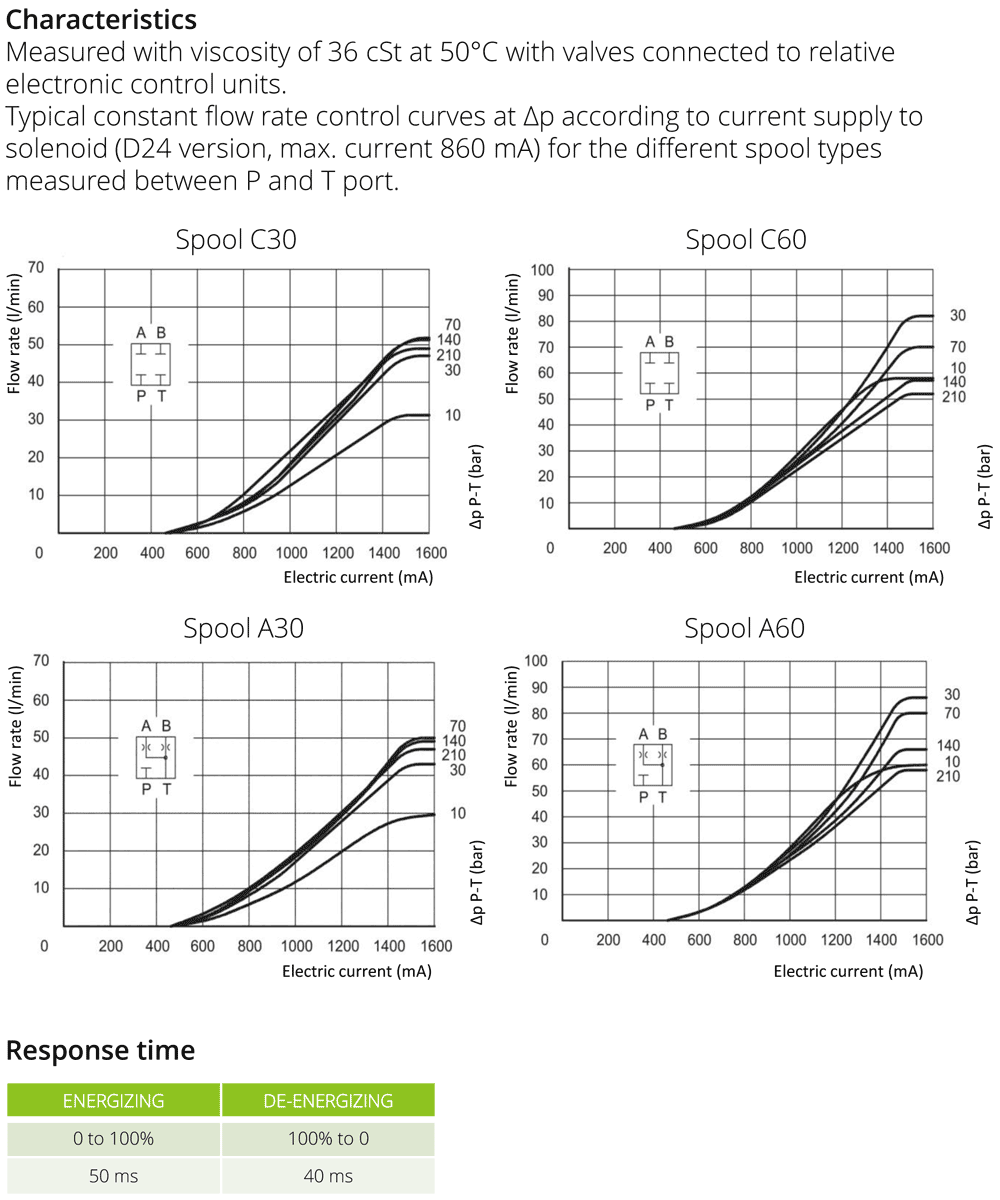

• Hysteresis (with PWM 100 Hz): < 6% of max flow rate
• Repeatability: < ±1.5% of max flow rate
• Ambient temperature range: -20 to 50°C
• Fluid temperature range: -20 to 80°C
• Fluid viscosity range: 10 to 400 cSt
• Recommended viscosity: 25 cSt
• Fluid contamination degree: according to ISO 4406:1999 class 20/18/15
