EAVT L
EAVT L

EAVT-L

Configure EVOTEK products according to your requirements. Go to options to see all configuration possibilities.
Clear

Description

Description

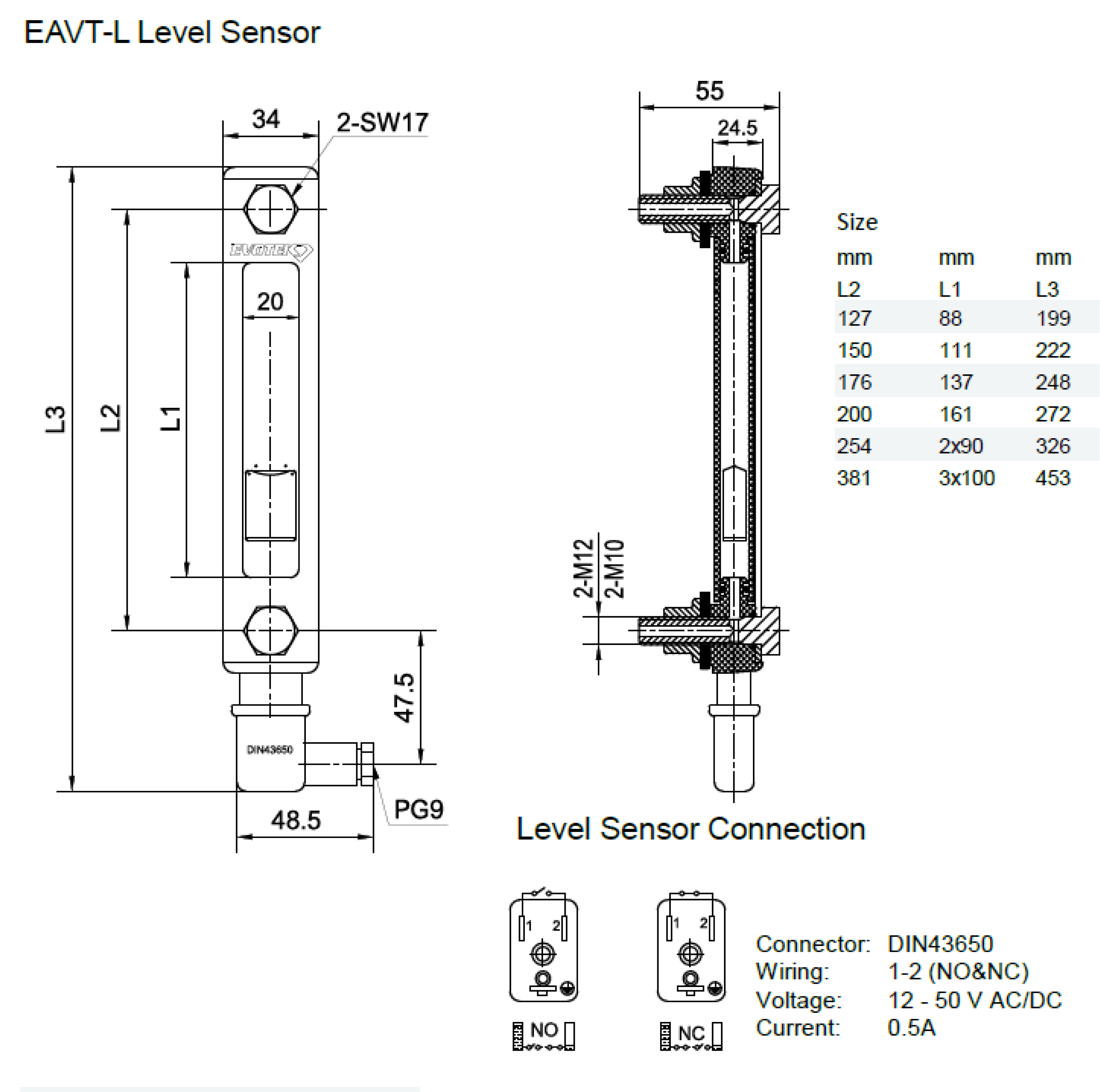

  • Level indicators with level switch
  • Temperature range: -20°C to 100°C
  • Installation torque: 8 – 10 Nm
  • Connector (Level switch): DIN 43650
  • Wiring (Level switch) : 1-2 (NO or NC)
  • Switching voltage (Level switch): 12 – 50 VAC/DC
  • Switching power (Level switch): 5W AV
  • Connector (Thermo switch): DIN 43650
  • Wiring (Thermo switch): 1-2 (NC)
  • Switching voltage (Thermo switch): 250 VAC
  • Switching current (Thermo switch): 2A
